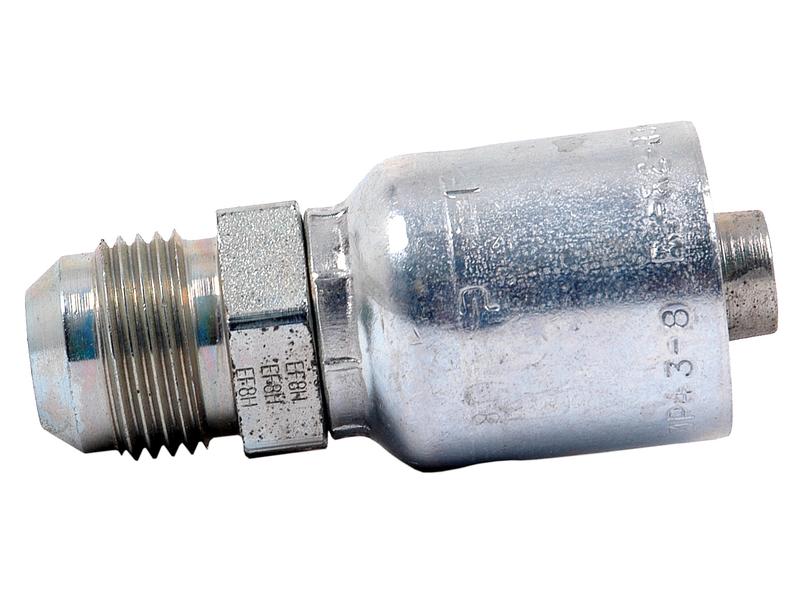

Sparex S.164372 JIC 37 Degree Male Straight Hose Fitting

JIC 37 Degree Male Straight Hose Fitting

Sparex part number: S.164372

The official Sparex catalog does not associate this product with a particular make or model. Match dimensions, specifications and application requirements before installation.

Specifications

• Reference: 10343-12-10
• Series: 43
• One piece fitting
• Hose inner diameter: 5/8 inch (15.8mm), DN16
• Thread: JIC 1-1/16 x 12 male
• Cone angle: 37 degrees
• Dimension A: 77mm
• Dimension B: 41mm
• Dimension H: 1-1/8 inch

Manufacturer replacement references: Parker Hannifin 10343-12-10
