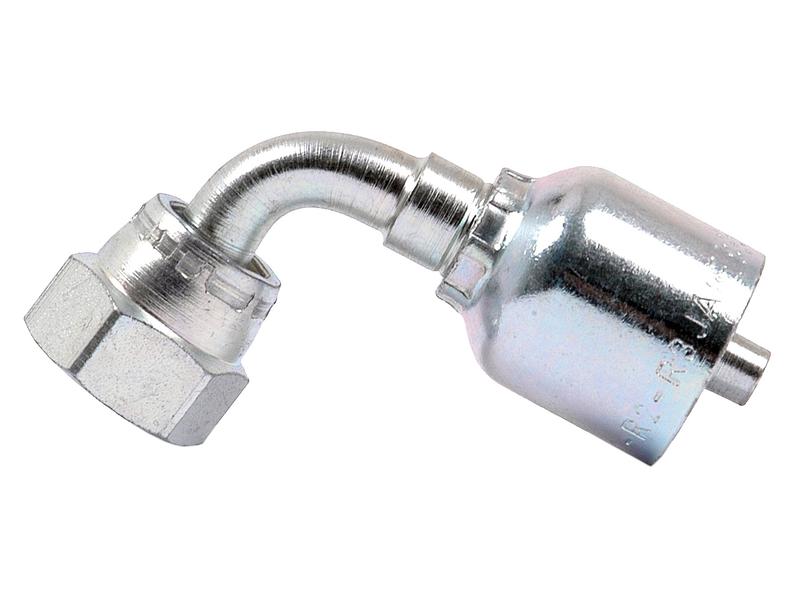

Sparex S.1231410 JIC Hose Fitting 5/8 Inch x 7/8 x 14

JIC Hose Fitting 5/8 Inch x 7/8 x 14

Sparex part number: S.1231410

Hydraulic fitting. The official Sparex catalog does not associate this product with a particular make or model. Match the fitting reference, dimensions and application requirements before installation.

Specifications

• Reference: 13943-10-10
• Series: 43
• One piece fitting
• Hose inner diameter: 5/8 inch (15.8mm), DN16
• Thread: JIC 7/8 x 14
• Dimension A: 78mm
• Dimension B: 31mm
• Dimension E: 31mm
• Dimension W: 1 inch

Manufacturer replacement references: Parker Hannifin 13943-10-10, 13W48-1010, 13W48-10-10
