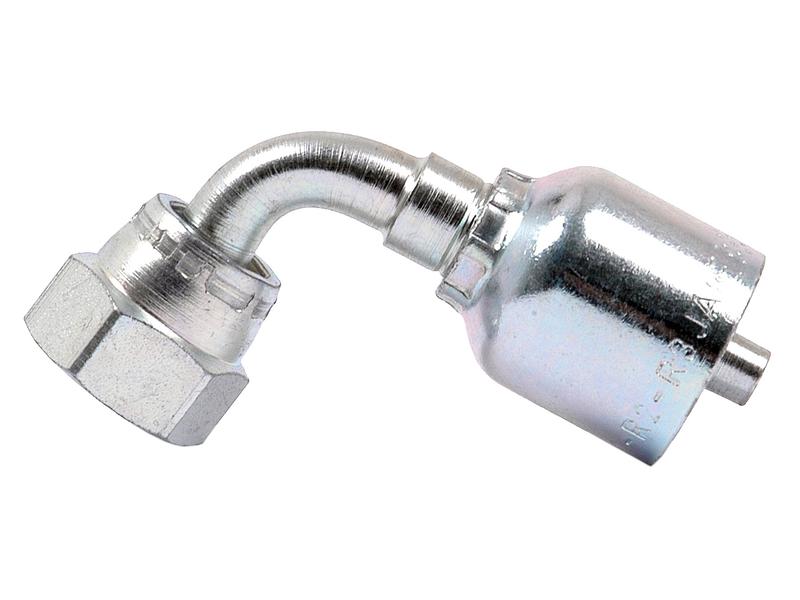

Sparex S.1231710 JIC Hose Fitting 5/8 Inch x 1-1/16 x 12

JIC Hose Fitting 5/8 Inch x 1-1/16 x 12

Sparex part number: S.1231710

Hydraulic hose fitting. The official Sparex catalog does not associate this product with a particular make or model. Match the fitting reference, dimensions and application requirements before installation.

Specifications

• Reference: 13943-12-10
• Series: 43
• One piece fitting
• Hose inner diameter: 5/8 inch (15.8mm), DN16
• Thread: JIC 1-1/16 x 12
• Dimension A: 86mm
• Dimension B: 51mm
• Dimension E: 46mm
• Dimension W: 1-1/4 inch

Manufacturer replacement references: Parker Hannifin 13943-12-10, 13948-1210, 13948-12-10
