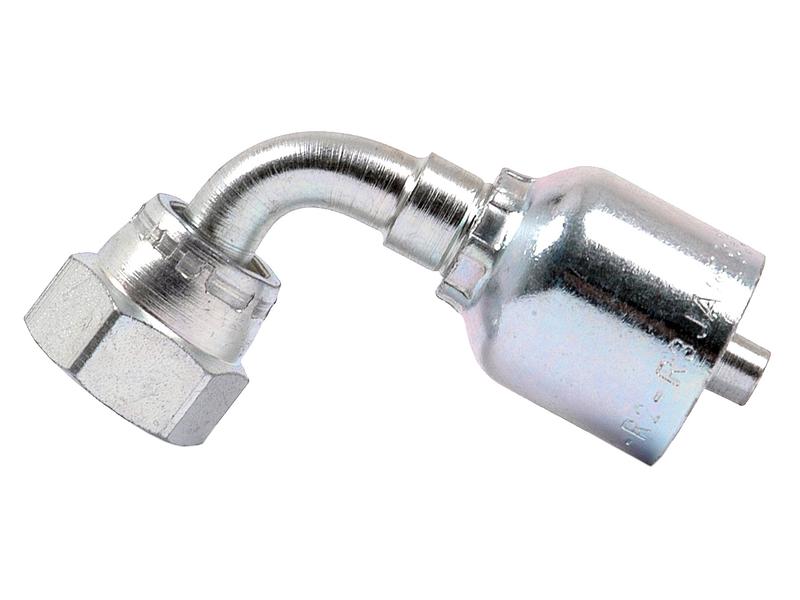

Sparex S.1230704 JIC Hose Fitting 1/4 Inch x 7/16 x 20

JIC Hose Fitting 1/4 Inch x 7/16 x 20

Sparex part number: S.1230704

Hydraulic fitting. The official Sparex catalog does not associate this product with a particular make or model. Match the fitting reference, dimensions and application requirements before installation.

Specifications

• Reference: 13943-4-4
• Series: 43
• One piece fitting
• Hose inner diameter: 1/4 inch (6.3mm), DN06
• Thread: JIC 7/16 x 20
• Dimension A: 46mm
• Dimension B: 28mm
• Dimension E: 17mm
• Dimension W: 9/16 inch

Manufacturer replacement references: Parker Hannifin 13943-4-4, 13W48-4-4
