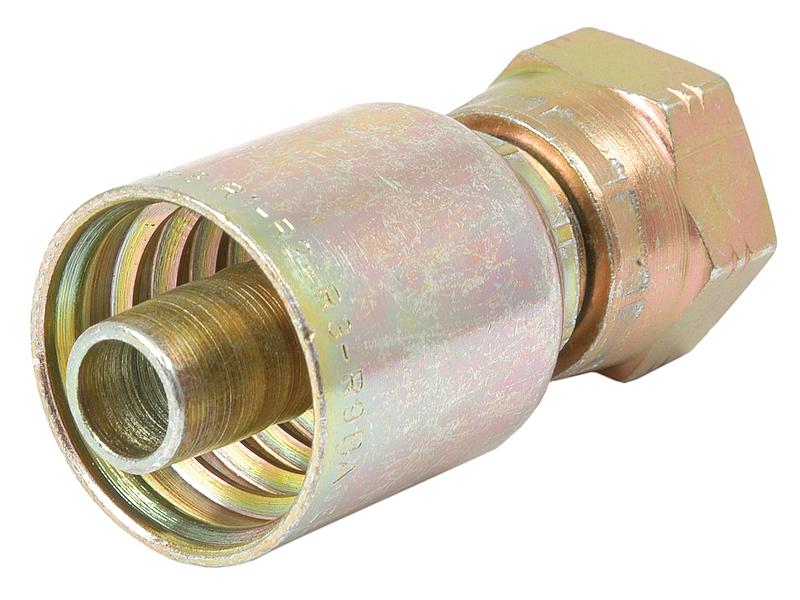

Sparex S.1120808 BSP 60 Degree Female Straight Swivel Hose Fitting

BSP 60 Degree Female Straight Swivel Hose Fitting

Sparex part number: S.1120808

Hydraulic fitting. The official Sparex catalog does not associate this product with a particular make or model. Match the dimensions and application requirements before installation.

Specifications

• Reference: 19243-8-8
• Series: 43
• One piece fitting
• Cone angle: 60 degrees
• Hose inner diameter: 1/2 inch (12.7mm), DN12
• Thread: BSP 1/2 x 14
• Dimension A: 57mm
• Dimension B: 22mm
• Dimension W: 27mm

Manufacturer replacement references: Parker Hannifin 19243-8-8, 19248-8-8
