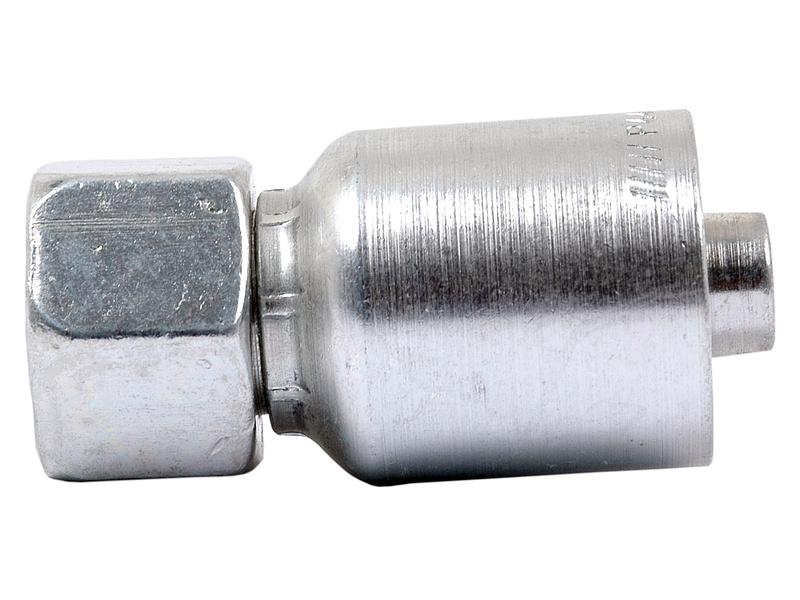

Sparex S.1321806 Metric Female Straight Swivel Light Series Hose Fitting

Metric Female Straight Swivel Light Series Hose Fitting

Sparex part number: S.1321806

The official Sparex catalog does not associate this product with a particular make or model. Match the dimensions, fitting requirements and intended application before installation.

Specifications

• Reference: 1C343-12-6
• Series: 43
• One piece fitting
• Hose inner diameter: 3/8 inch (9.5mm), DN10
• Thread: M18 x 1.50 metric
• Female straight swivel light series
• Dimension A: 47mm
• Dimension B: 18mm
• Dimension W: 22mm

Manufacturer replacement references: Parker Hannifin 1C343-12-6, 1CA43-12-6
