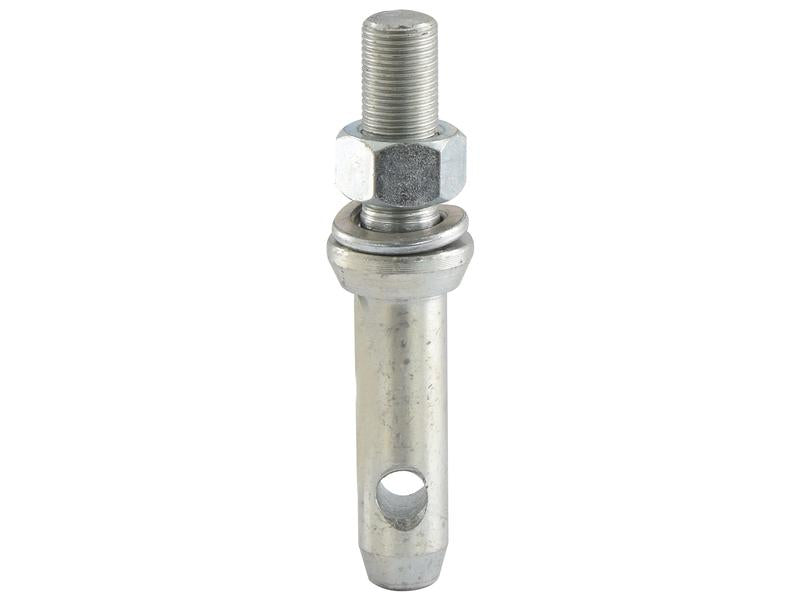

Sparex S.198 Lower link implement pin 7/8x5-17/32'', Thread size 3/4x48mm Cat. 1 (Ø22mm)

Lower link implement pin 7/8x5-17/32'', Thread size 3/4x48mm Cat. 1 (Ø22mm)

Sparex part number S.198.

Specifications

• agility_alternative_products: 900198,164553
• Brand: Sparex
• California Proposition 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Category: 1 (Ø22mm)
• Diagram specifications: (A) Pin Ø:22mm (7/8'') (B) Usable length of :51mm (2-1/32'') (C) Overall length:140mm (5-17/32) (E) Hole Ø :12mm (1/2'') /(F))Thread length:48mm (G) Thread size :3/4''
• Duty: Standard
• Hole Ø (mm): 12
• Hole Ø Inches: 1/2
• Material: EN8 Steel
• Overall Length (inches): 5-17/32
• Overall length (mm): 140
• Pin Type: Implement Attachment
• Pin Ø (inches): 7/8
• Pin Ø (mm): 22
• Thread length (mm): 48
• Thread size: 3/4
• Thread: UNF
• Usable length of (inches): 2-1/32
• Usable length of (mm): 51

Application

Sparex does not associate this product with a particular make or model. Match the part number, dimensions and connection specifications to your application.

Product photo, specifications and application information checked against the Sparex catalog. Confirm the applicable dimensions and equipment serial number before ordering.
