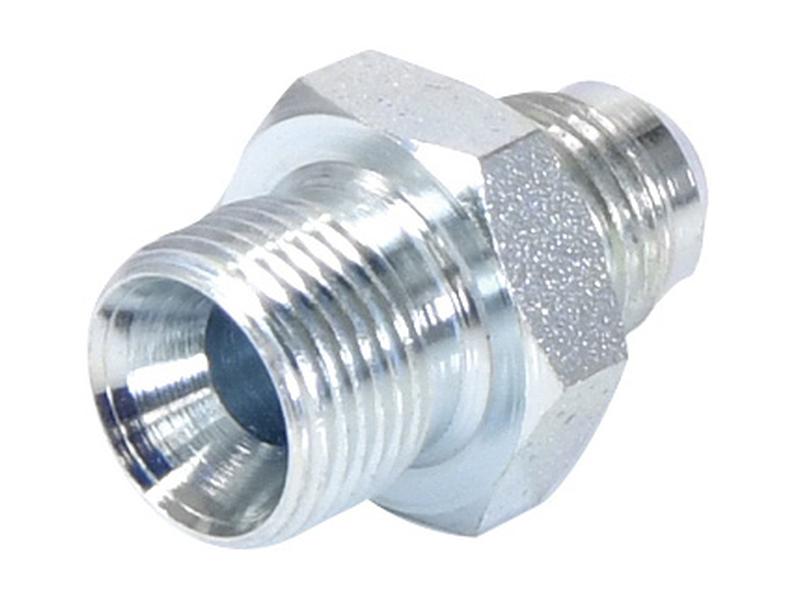

Sparex S.3456 Hydraulic Adapter 3/8 Inch BSP Male x 9/16 Inch JIC Male

Hydraulic Adapter 3/8 Inch BSP Male x 9/16 Inch JIC Male

Sparex part number: S.3456

The official Sparex catalog does not associate this product with a particular make or model. Match dimensions and application requirements before installation.

Specifications

• Connection:3/8 inch BSP male x9/16 inch JIC male
• Across flats:22mm
• Overall length:34.19mm
• Dimension L1:13.21mm; L2:14.12mm
• Dimension B1:7.92mm; B2:7.54mm
