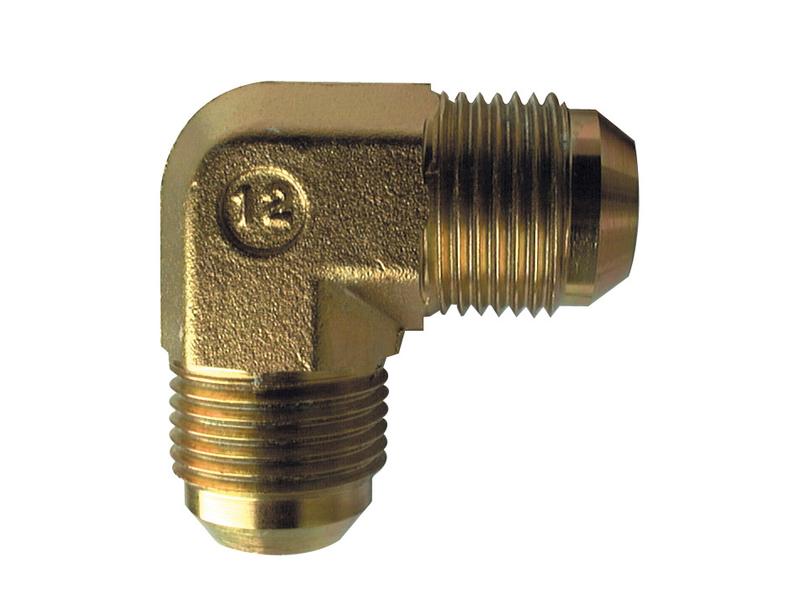

Sparex S.35076 Hydraulic Adapter 9/16 Inch JIC Male 90 Degree Compact Elbow

Hydraulic Adapter 9/16 Inch JIC Male 90 Degree Compact Elbow

Sparex part number: S.35076

The official Sparex catalog does not associate this product with a particular make or model. Match dimensions, connection type and application requirements before installation.

Specifications

• Reference: 6EMTXS
• Connections: 9/16 inch JIC male x 9/16 inch JIC male
• 90 degree compact elbow
• Overall length: 34.8mm
• Dimensions B1 and B2: 7.52mm
• Dimensions L1 and L2: 16.51mm
• Dimensions LL1 and LL2: 27.31mm

Manufacturer replacement references: Parker Hannifin 6EMTXS
