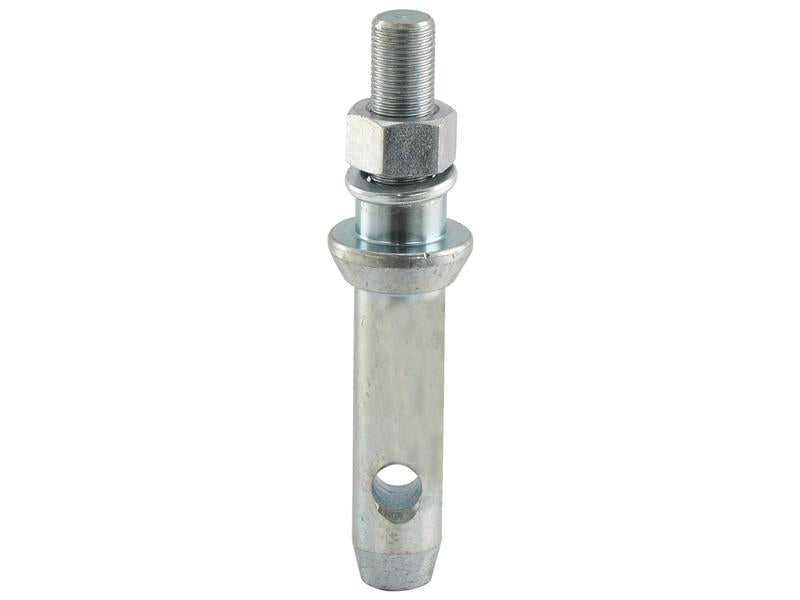

Sparex S.199 Lower link implement pin 7/8x5-17/32'', Thread size 5/8x43mm Cat. 1 (Ø22mm)

Lower link implement pin 7/8x5-17/32'', Thread size 5/8x43mm Cat. 1 (Ø22mm)

Sparex part number S.199.

Specifications

• agility_alternative_products: 900199,164552
• Brand: Sparex
• California Proposition 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Category: 1 (Ø22mm)
• Diagram specifications: (A) Pin Ø:22mm (7/8'') (B) Usable length of :51mm (2-1/32'') (C) Overall length:140mm (5-17/32) (E) Hole Ø :12mm (1/2'') /(F))Thread length:43mm (G) Thread size :5/8''
• Duty: Standard
• Hole Ø (mm): 12
• Hole Ø Inches: 1/2
• Material: EN8 Steel
• Overall Length (inches): 5-17/32
• Overall length (mm): 140
• Pin Type: Implement Attachment
• Pin Ø (inches): 7/8
• Pin Ø (mm): 22
• Thread length (mm): 43
• Thread size: 5/8
• Thread: UNF
• Usable length of (inches): 2-1/32
• Usable length of (mm): 51

Compatible Models

Massey Ferguson: 738

Reference Part Numbers

Massey Ferguson: 646704M1, 646038M1, 646039M1

Product photo, specifications and application information checked against the Sparex catalog. Confirm the applicable dimensions and equipment serial number before ordering.
