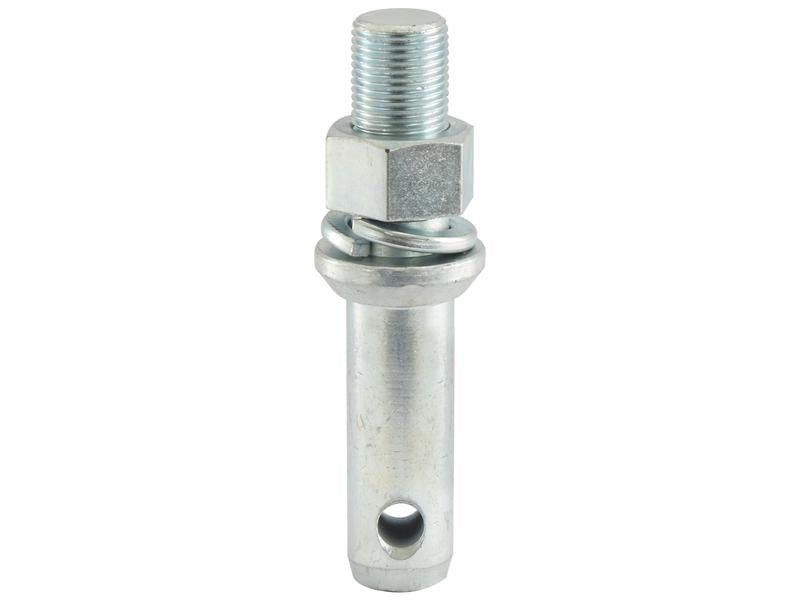

Sparex S.5191 Lower link implement pin 1-1/8x5-7/8'', Thread size 1x51mm Cat. 2 (Ø28mm)

Lower link implement pin 1-1/8x5-7/8'', Thread size 1x51mm Cat. 2 (Ø28mm)

Sparex replacement part S.5191.

Specifications

• Brand: Sparex
• California Proposition 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Category: 2 (Ø28mm)
• Diagram specifications: (A) Pin Ø:28mm (1-1/8'') (B) Usable length of :60mm (2-3/8'') (C) Overall length:149mm (5-7/8) (E) Hole Ø :12mm (1/2'') /(F))Thread length:51mm (G) Thread size :1''
• Duty: Standard
• Hole Ø (mm): 12
• Hole Ø Inches: 1/2
• Material: EN8 Steel
• Overall Length (inches): 5-7/8
• Overall length (mm): 149
• Pin Type: Implement Attachment
• Pin Ø (inches): 1-1/8
• Pin Ø (mm): 28
• Thread length (mm): 51
• Thread size: 1
• Thread: UNF
• Usable length of (inches): 2-3/8
• Usable length of (mm): 60

Application

Sparex lists no specific equipment models. Match dimensions and connection specifications to your application.

Photo and application checked against the Sparex catalog. Confirm equipment serial number and dimensions before ordering.
