Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch

Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch

$43.46 USD
Skip to product information
Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch
  • Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch
  • Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch
Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch

Sparex S.3005 Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch

$43.46

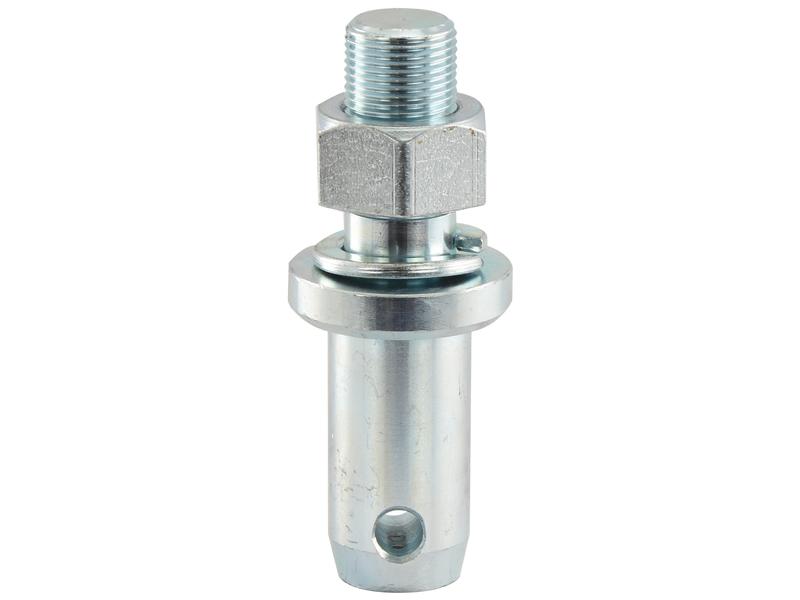

Category 3 Lower Link Implement Pin 1-7/16 x 5-7/8 Inch

Sparex part number: S.3005

The official Sparex catalog does not associate this product with a particular make or model. Match dimensions and application requirements before installation.

Specifications

  • Category:3
  • Pin diameter:36mm (1-7/16 inch)
  • Usable length:54mm (2-1/8 inch)
  • Overall length:149mm (5-7/8 inch)
  • Thread:1-1/8 inch UNF; thread length48mm
  • Hole diameter:12mm (1/2 inch)
  • Material:EN8 steel; standard duty
