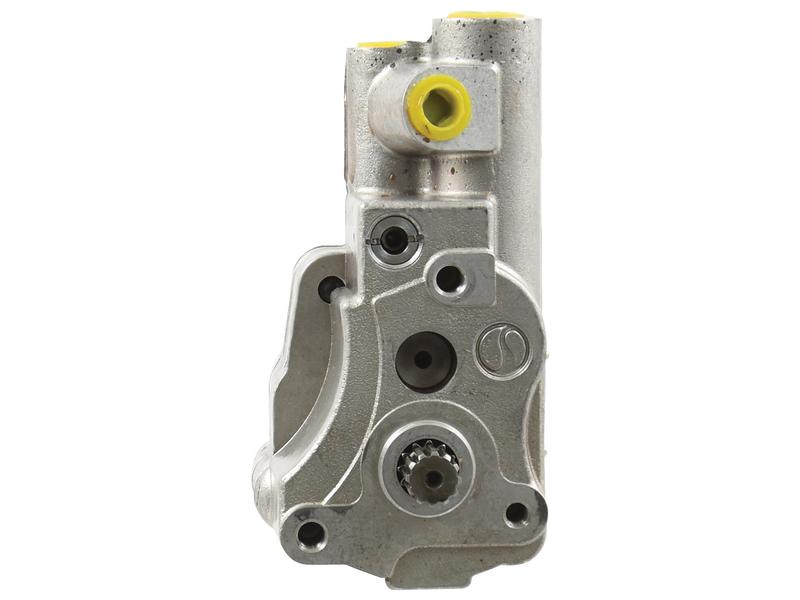

Sparex S.40875 Twin Inlet Auxiliary Hydraulic Pump

Twin Inlet Auxiliary Hydraulic Pump

Sparex part number: S.40875

Verified Sparex applications: Landini: Large9550; Massey Ferguson: 290 Brazilian;340;670,675,690,698,698T,699;1200,1250;2605;1004,1004T;253,263 Italian;2615,2620,2630;2625,2635 TAFE;550,560,565,575,590,595;20E industrial;133,135,140,148,150,152,155,158,165,165 US built,168,175,175 US built,178,178 US built,180,185,188;1080,1085;230,235,240,243,245,250,255,260,265,270,275,283,285(FR),285 US built,290,290 US built,298;375E,390E Brazilian;combines30,415. Confirm the original part reference and equipment configuration before installation. Match the twin-inlet configuration,12-spline drive,counter-clockwise rotation and port sizes.

Specifications

• Twin inlet auxiliary pump
• Displacement:14/8 cubic centimetres
• Rotation:counter-clockwise
• Spline count:12
• Front inlet hole size:19mm
• Front outlet:3/4-16 UNF2B
• Rear outlet:9/16-18 UNF2B
• Catalog maximum flow:28/16 litres per minute;6.7/3.8 gallons per minute

Manufacturer replacement references: Massey Ferguson1686765T,1686766M91,886367M96,1663627M92,1675136M91,1686765M91,526099M93,886367T,1675136T,1869458M92,1869458T,531604M92,5316073M92,531607M93,531607T,886367M95; Landini1675136M91,1869458M92,357727X1,1686765M91,3000417X1,531607M93,886367M96,1663627M92,1686766M91,1664509M1
