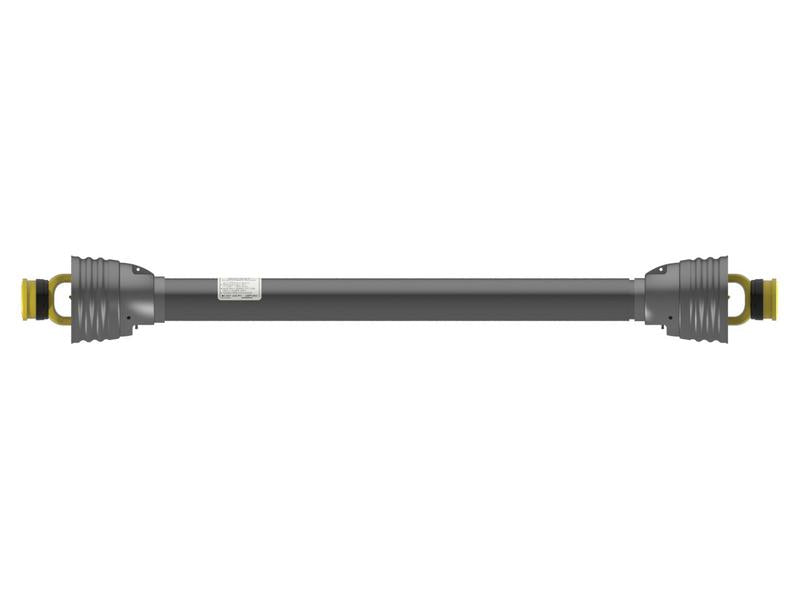

Sparex S.165329 Metric Tri-Lobe PTO Shaft Assembly AB6/A6 57 Inch

Metric Tri-Lobe PTO Shaft Assembly AB6/A6 57 Inch

Sparex part number: S.165329

The official Sparex catalog does not associate this product with a particular make or model. Match dimensions, specifications and application requirements before installation.

Specifications

• Reference: 14006657ST
• PTO and Italian series: AB6/A6; BYPY6
• Closed total length: 56.94 inches (1446mm)
• Lz length: 47.64 inches (1210mm)
• Tractor end and machine end: 1-3/8 inch x6 spline quick release
• Power rating: 64HP (48kW) at540RPM; 99HP (74kW) at1000RPM
• Torque: 1483Nm
• Tube profile: triangle; tube reference12509/12512
• Universal joint: 30.2 x92mm
• Easylock guard; central grease nipple
• Fully assembled; general all-purpose driveline application
