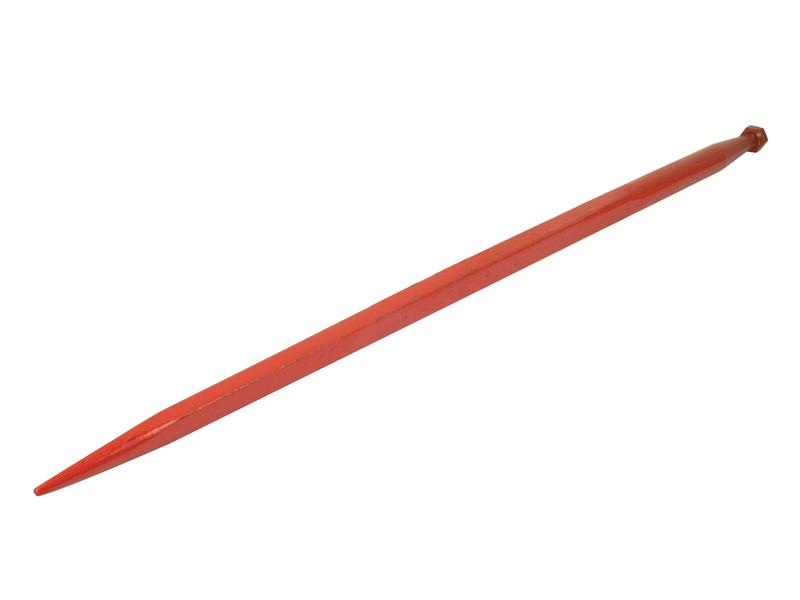

Sparex S.77018 Conus 2 Straight Bale Spear 49 Inch M28 x 1.50

Conus 2 Straight Bale Spear 49 Inch M28 x 1.50

Sparex part number: S.77018

Bale spear for Conus2 fitting. The catalog lists ALO Quicke,Grays,Kverneland,Lawrence Edwards,McHale,Stoll,Strimech andValpadana various,without individual model identification. Confirm the Conus2 mount,thread andload requirements before installation.

Specifications

• Length:1250mm (49inches)
• Tine diameter:44mm
• Square profile;straight;red
• Fitting:Conus2;Conus reference K013
• Thread:M28 x1.50
• Nut included:S.77030
• Maximum torque:700Nm
• Capacity:3000lb at28inches from sleeve to load point
• Bush references:standard S.1841;heavy duty S.19836
• Retighten nuts to instructed torque after5hours of operation using torque-controlled spanner

Manufacturer replacement references: Kverneland241162M28,241105,241162,KK241105,KK241162,KK241162M28; McHale CTN00002; ALO Quicke5068004
