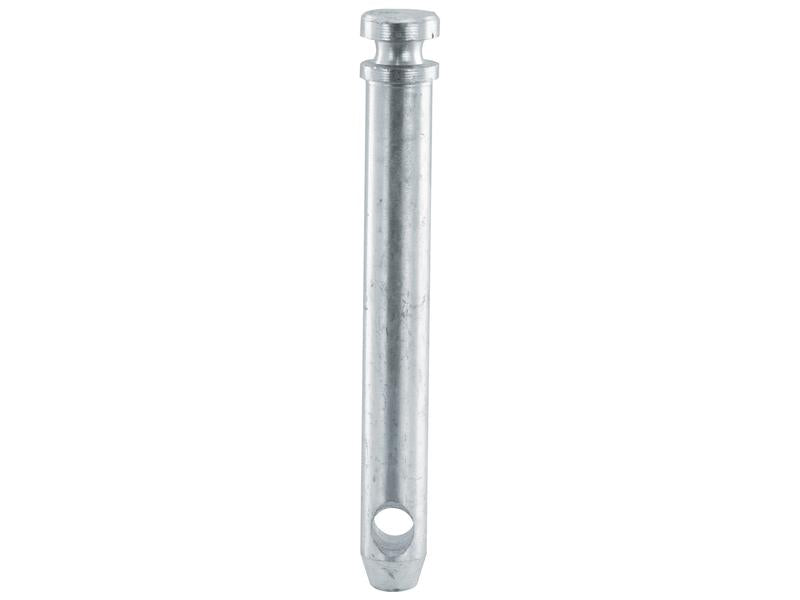

Sparex S.77 Category 1 Top Link Pin 3/4 x 5 Inch

Category 1 Top Link Pin 3/4 x 5 Inch

Sparex part number: S.77

Selected verified Sparex applications: Ford New Holland: Selected catalog applications:2000,3000,4000,5000,7000;2310,2610,2810,2910,3310,3610,3910,4110,4610;3230,3330,3430,3930,4130,4330,4630,4830,5030;2N,8N,9N,Jubilee,NAA,NAB; Fordson: Dexta,Super Dexta. Match the original reference,dimensions and equipment configuration before installation.

Specifications

• Category:1
• Pin diameter:19mm (3/4inch)
• Usable length:127mm (5inches)
• Overall length:164mm
• Head diameter:22mm;hole diameter:12mm
• EN8steel;standard duty

Manufacturer replacement references: Bomford46125.3/3.874.1; McConnel O3.874.01/46125; Ford New Holland E381T9,81717142,1934719
